When an engineer becomes product manager

In this post, I would like to talk about our infrastructure and how we deploy. I, Sebastian, had been coding the initial version of Alasco. As time went on and the team grew, I moved into the product manager role. Today I am responsible for the product, but more from a strategic point and less from a technical point. My transition was gradual, at first I stopped writing features and the last thing I worked on was infrastructure - both because I enjoy it for the empowerment it gives and because it’s quite decoupled from the daily product development work.

An issue I often have as product manager is “can you give feedback / approve this feature?”. Obviously if I do it on an engineers computer, the engineer is blocked. Therefore I had a build environment checkout on my computer but as stuff got more complex I was often stuck for hours to catch up with my setup so the latest features would work. As I want to block my engineering team as little as possible, we needed a better solution! Here’s the story how each branch today gets its own infrastructure and can readily be accessed by https://some-nice-url.alasco.de. Super-easy to test!

Our initial CI pipeline

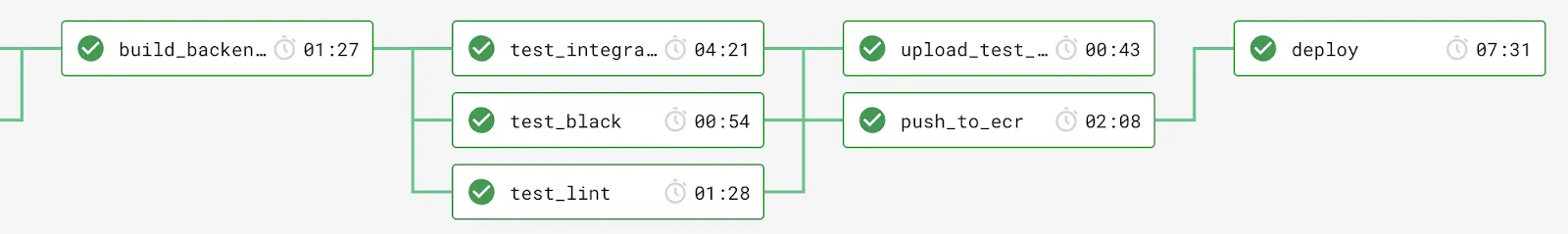

Alasco is built in the backend with a python / django application and react in the frontend. We already had a quite good CI pipeline in place before we ventured on this quest. In a nutshell, whenever changes get pushed to GitHub, a CircleCI build is triggered. Our CI pipeline builds a docker container that contains both backend and frontend code and run tests on it. Once good, it’s pushed into a docker registry. We host our application on AWS ElasticBeanstalk, where we deploy it as a docker container. Beanstalk gives us good additional tooling (like rolling updates, monitoring, logging…) and we feel with using a docker container we are independent enough to switch later to more sophisticated setups. In the end, the process from committing code to having it live is quite straightforward. We take pride that new team members commit and deploy to production on their first day in the team! I still remember copying php files to ftp servers ten years ago, what a dramatic change!

An idea is born: never checkout a branch again to demo it

Being a young startup, we did not provision our infrastructure using code in the first days. As we now have a significant customer base on our platform, we wanted to change this for enhanced reliability and reproducibility. Here the idea was born: why don’t we spin up a dedicated setup for each branch pushed? Obviously this would be something that should be easily doable once all our infrastructure was in code. Here’s how we did that:

As we host on AWS, we looked at different options to describe our infrastructure: CloudFormation, Terraform or troposhere. We ended up using troposhere, as pure CloudFormation json files seemed tedious to maintain, terraform had a complex syntax and we didn’t need multi-cloud support. Troposhere didn’t require us writing pure json files and had the benefit of being in python too (thus could well integrate into our existing infrastructure).

AWS Beanstalk as the nucleus of a deployment

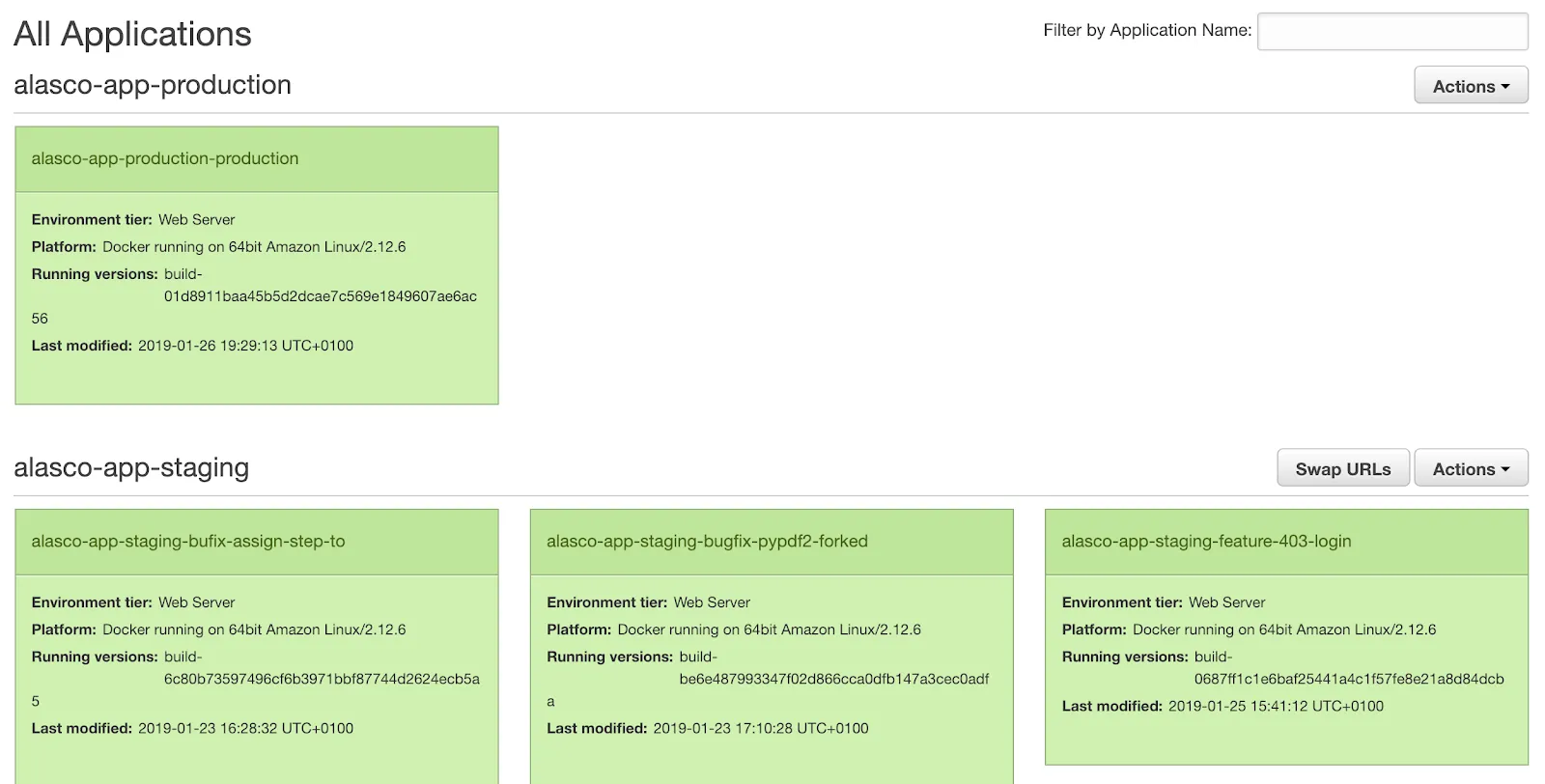

ElasticBeanstalk has the concept of an application and an environment. Think of an application as a group of environments. Between those you can, for example, share deployed versions of your software. We decided to have two dedicated applications, one for production and one for staging. This is an additional safe-guard that separates production from staging. Then all the feature-branches get deployed as an environment in the staging app. This looks like this:

From a technical standpoint we decided to have two separate CloudFormation templates: one that spins up the application (that’s rarely executed) and one to spin up an environment within an application. We started our work based on Caktus’s AWS Webstack but soon deviated so heavily from it that it was not forkable anymore. For example we reworked it to have most parameters not being CloudFormation Parameters in the template but that we set them at template generation time in code. This gave us a better feeling of control as well as reducing complexity at stack creation time. Also we could then create inheritance of settings and selectively overwriting parameters. This ensures environments are as similar as possible and differences are clearly visible.

CicleCI to drive deploys

We tweaked the deploy step in CircleCI to generate the CloudFormation templates, afterwards the template is executed and this brings up the stack. The stack provisions not only our application on Beanstalks, but also the RDS databases, S3 buckets and alike. We also create a DNS entry so the application can be reached by the branch’s name (that’s what all the work has been for!):


Saving some $$$

Over time we upgraded out setup to install test data on newly created stack as to make testing even easier. We also applied some tweaks to save costs. First, we modified the branch deploys to use cheaper hardware (think smaller instances) as well as reduced redundancy (e.g. only one instance behind a load balancer). The latter also speed up our deployment times, as we didn’t needed rolling updates on multiple instances. The next improvement was to introduce skipped provisioning on branches that ended on -no-infra. Some things just don’t need an infrastructure to demo (like a modified source code formatter).

The final step was to introduce a cleanup script, that removes infrastructure once it’s not needed anymore. We decided to remove infrastructure once the respective branch is deleted. We therefore delete branches once we merged the pull requests.

For this we created a script, that loops over the existing branches and compares them to the provisioned infrastructure (we tag the stacks with the corresponding branch). Upon deleting, it’s important to not only delete the stack itself but also handle S3 buckets. Unfortunately S3 buckets which are non-empty cannot be deleted. Therefore our script empties buckets before triggering the stack delete. Here’s our script for your convenience:

#!/usr/bin/env python3
"""Branchless Stack Removal
This module / script deletes AWS stacks that have no corresponding branch on
GitHub anymore. It is expected that AWS stacks have a tag called `branch`.
Example:
    Running this is as simple as:
        $ python3 remove_branchless_stacks.py my-github-repo
    It'll assume the AWS region is `eu-central-1` it can be set via the
    optional CLI parameter `--region`
Attributes:
    _PROTECTED_STACKS (tuple): This iterable of branch-names will never be
    deleted. Change these to branches you'll make sure to keep, e.g. `master`
    or `production`.
"""
from typing import Dict, Set

import argparse
import os

import boto3
import github

_PROTECTED_STACKS = ("alasco-app-staging", "alasco-app-production")

def _create_repo_client(repo: str) -> github.Repository.Repository:
    """ Create GitHub client for given repository """
    token = os.getenv("GITHUB_TOKEN")
    client = github.Github(token)
    return client.get_repo(repo)

def _get_cloudformation_stacks(region: str) -> Dict[str, str]:
    """
    Get a Dictionary of Cloudformation stacks (branch -> stackname)
    It is assumed that your AWS credentials are already set up!
    """
    cf_client = boto3.client("cloudformation", region_name=region)
    res_describe_stacks = cf_client.describe_stacks()

    stacks_aws = dict()

    # Collect only stacks which are tagged with a branch
    for stack in res_describe_stacks["Stacks"]:
        for tag in stack["Tags"]:
            if tag["Key"] == "branch":
                stacks_aws[tag["Value"]] = stack["StackName"]
                break

    return stacks_aws

def _clean_s3_bucket(stacks: Set[str], region: str):
    """ Empty S3 buckets, else stack deletes fail """
    cf_client = boto3.client("cloudformation", region_name=region)
    s3_client = boto3.client("s3")

    for stack_name in stacks:
        stack_desc = cf_client.describe_stacks(StackName=stack_name)["Stacks"][0][
            "Outputs"
        ]
        stack_outputs = {item["OutputKey"]: item["OutputValue"] for item in stack_desc}
        s3_bucket_name = stack_outputs["PrivateAssetsBucketDomainName"].replace(
            ".s3.amazonaws.com", ""
        )

        paginator = s3_client.get_paginator("list_object_versions")
        response_iterator = paginator.paginate(Bucket=s3_bucket_name)
        try:
            for response in response_iterator:
                versions = response.get("Versions", [])
                versions.extend(response.get("DeleteMarkers", []))
                for version in versions:
                    s3_client.delete_object(
                        Bucket=s3_bucket_name,
                        Key=version["Key"],
                        VersionId=version["VersionId"],
                    )
        except s3_client.exceptions.NoSuchBucket:
            print(f"Bucket '{s3_bucket_name}' not found, continuing to stack delete.")

def _delete_stacks(stacks: Set[str], region: str):
    cf_client = boto3.client("s3", region_name=region)

    for stack_name in stacks:
        try:
            cf_client.delete_stack(StackName=stack_name)
        except Exception:  # pylint: disable=broad-except
            print(f"Failed to delete stack for branch '{stack_name}':")
            raise

def remove_branchless_stacks(repo: str, region: str):
    """
    Find Cloudformation Stacks without a branch on GitHub and delete those
    """
    stacks = _get_cloudformation_stacks(region)

    repo = _create_repo_client(repo)
    branches = set(branch.name for branch in repo.get_branches())

    stacks_to_check = set()
    for branch, stack_name in stacks.items():
        if branch in branches or branch in _PROTECTED_STACKS:
            continue
        stacks_to_check.add(stack_name)

    if not stacks_to_check:
        print("Found no stacks to be deleted")
        return

    _clean_s3_bucket(stacks_to_check, region)
    _delete_stacks(stacks_to_check, region)

def main():
    """ Remove AWS Stacks without an GitHub branch """
    parser = argparse.ArgumentParser(
        description="Remove Cloudformation stacks without branch"
    )
    parser.add_argument("repo", type=str, help="GitHub repo to check")
    parser.add_argument(
        "--region", type=str, help="AWS region name", default="eu-central-1"
    )

    args = parser.parse_args()

    remove_branchless_stacks(args.repo, args.region)

if __name__ == "__main__":
    main()

As this script needs both Github access as well as AWS credentials, we decided to execute it as a scheduled build on CircleCI (currently on a hourly schedule). So we can provide credentials via environment variables in a secure way. This then looks like this in the CircleCI config:

clean_up:
  triggers:
    - schedule:
        cron: 0 * * * *
        filters:
        branches:
        only:
          - staging
        jobs:
          - checkout_code
          - clean_up_cf:
              requires:
                - checkout_code

Today, PO demos are easy as pie

While taking some days to get it running, this setup has greatly reduced the time to checkout and discuss new features. It’s also a major force in user testing, as new features are available with minimum delay to our UX researcher to validate them with our users.

Interested in having this setup too? Reach out to us if you have any questions or do join us: we’re looking for great team members, check out our open positions at https://www.alasco.de/en/!
